Remote control of AAPS
There are four highly effective tools for remotely managing AAPS:
SMS commands (follower phone can be either Android or iOS), 2) AAPSClient (follower phone is Android) 3) Nightscout (Android, iOS or other computer/device).
Smartwatches (Android)
The first three are mostly appropriate for caregivers/parents, but smartwatches are very useful for caregivers/parents and for adults with diabetes themselves.
1) SMS Commands
See the dedicated SMS Commands page.

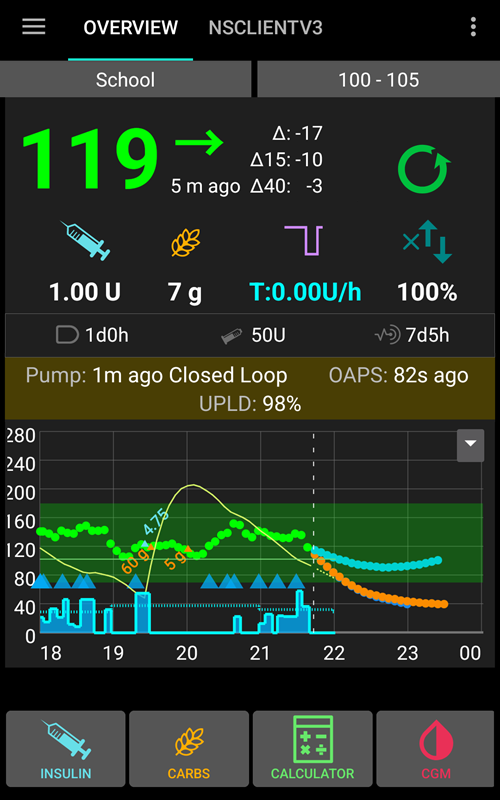

2) AAPSClient
Note that NSClient has been replaced by AAPSClient for AAPS version 3.2 and higher, check the version release notes for more information.
For versions of AAPS which are older than AAPS 3.2, if you have a caregiver/parent Android phone you can directly download and install the AAPSClient apk. AAPSClient looks very similar in appearance to AAPS itself, offering the caregiver tabs that will remotely action commands in AAPS:
There are 2 versions of the apk that can be downloaded from here, AAPSClient & AAPSClient2 which have a subtle but important difference as explained below.
AAPSClient can be installed on a single phone or multiple follower phones (i.e. parent 1’s follower phone and parent 2’s follower phone) in order for both caregivers to be granted access and remote control a patient’s AAPS phone.
Should a caregiver require a second copy of AAPSClient to remote control an additional patient with a Nightscout account, they should install AAPSClient2 in addition to AAPSClient. AAPSClient 2 allows a single caregiver to install the AAPSClient apk twice on the same follower phone in order to be given simultaneous access and remote control to two different patients.
To download AAPSClient, navigate to here and click on the asset “app-AAPSClient-release_x.x.x.x” (it may be a newer version to that shown in the screenshot below):
Then go to downloads on your computer. On Windows, -downloads_ will show the right hand ribbon:
Once downloaded, click show in folder to locate the file.
The AAPSClient apk can now be either:
Transferred by a USB cable onto the follower phone; or Dragged into Google drive folder, and then added onto the follower phone by clicking on the “app-AAPSClient-release” file.
Synchronization- AAPSClient and AAPS set up (for Version 3.2.0.0 above)
Once AAPSClient apk is installed on the follower phone, the user must ensure their ‘Preferences’ in Config Builder are correctly set up and aligned with AAPS for Nightscout 15 (see Release Notes here). The example below provides Synchronization guidance for NSClient and NSClientV3 using Nightscout15 but there are other options available with AAPS (e.g xDrip+).
Within the ‘Synchronization’ located under ‘Config Builder’, the user can opt for either Synchronization options for both AAPS and follower phone being:
Option 1: NSClient (also known as ‘v1’) - which synchronizes the user’s data with Nightscout; or
Option 2: NSClientV3 (also referred to as ‘v3’).- which synchronizes the user’s data with Nightscout using v3 API.
The user must ensure that both the AAPS and AAPS Client phones are synched together by actioning either option for v1 or v3 being:
Option 1: v1 for both phones:
Enter your Nightscout URL
Enter your API secret
Option 2: v3 for both phones:
Enter your Nightscout URL under NSClientV3 tab
Enter your NS access token under ‘Config Build’ tab. Please follow the notes here
If selecting Websockets (which is optional) ensure this is activated or deactivated for both AAPS’ and AAPSClient’s phone. Activating Websockets in AAPS and not within AAPSClient (and vice versa) will only cause AAPS to malfunction. By enabling websockets will allow for faster synchronization with Nightscout but may lead to more phone battery consumption.
Users should ensure that both AAPSClient and AAPS are showing ‘connected’ under the ‘NSClient’ tab for each phone, and that ‘Profile Switches’ or ‘Temp Target’ can be correctly activated in AAPS once selected in AAPSClient.
Users should also ensure that carbs are logged in both ‘Treatments’ within both AAPSClient and AAPS otherwise this could indicate a malfunction within the user’s set up.
Troubleshooting ‘NS access token’ configuration issues
The precise ‘NS access token’ configuration may differ depending upon whether your Nightscout provider is a paid for hosted site or not.
If you are struggling with AAPS v3 to accept the ‘NS access token’ and using a paid for hosted Nightscout site, you may wish to first liaise with your Nightscout provider on how to resolve the ‘NS access token’ difficulties. Otherwise, please reach out to the AAPS group but please double check that you have correctly followed the notes before doing so here.
Features of AAPSClient include:
Tab / Hamburger |
Features |
---|---|
Action Tab |
- Profile Switch |
Food Tab |
|
Treatments Tab |
- Check Treatments delivered including bolus and carbs entered |
Maintenance Tab |
- Export and Import Settings |
Profile Tab |
- Creating new profile |
AAPSClient allows the caregiver to make many of the adjustments that are allowed directly in AAPS (excluding insulin boluses) remotely, via the mobile or internet network. The main benefits of AAPSClient are the speed and ease with which caregivers/parents can use it to remotely control APPS. AAPSClient can be much faster than entering SMS Commands, if delivering a command which would require authentication. Commands entered on AAPSClient are uploaded onto Nightscout.
Remote control through AAPSClient is only recommended if your synchronization is working well (i.e. you don’t see unwanted data changes like self-modification of TT, TBR etc) see release notes for Version 2.8.1.1 for further details.
AAPSClient with smartwatch options
A smartwatch can be a very useful tool for helping to manage AAPS with kids. A couple of different configurations are possible. If AAPSClient is installed on the parents phone, the AAPSClient WearOS app can be downloaded and installed on a compatible smartwatch which is connected to the parent’s phone. This will show current BG, loop status and allow carb entry, temp targets and profile changes. It will NOT allow bolusing from the WearOS app. You can read more about Smartwatches here.
3) Nightscout
As well as Nightscout being a server in “the Cloud”, there is also a dedicated Nightscout app which can be downloaded directly from the App Store on your iPhone. If you have an Android follower phone, there is not a dedicated Nightscout app and it is better to use AAPSClient, or, if you only want to follow, and not send treatments you can download and install the Nightwatch app from the Playstore.
Once you have installed the Nightscout app on your iPhone, open the app and follow the set-up prompts, entering your Nightscout address (see below, left). The form of this may vary depending on how your Nightscout is hosted. (e.g. http://youraddresshere.herokuapp.com). Then enter your Nightscout API secret (see below, right). If not prompted for your API password, then you need to enter this by clicking on the padlock at the top of the app:
More info on setup is available directly from Nightscout
When you first log in, you will have a very simple display. Customize the display options, by selecting the “hamburger” in the top right and scrolling down:
Scroll down through to “Settings”. You may wish to change the “scale” to “linear” as the default for the BG display is logarithmic, and under “render basal” select “default” so that the pump basal shows up.
Select your desired options. Uncheck alarms if you use an alternative app for alarms.
Continue to scroll down until you get to “show plugins”.
You need to make sure “careportal” is checked, and can also select various other metrics (most useful are: IOB, care portal, pump, cannula age, insulin age, basal profile and OpenAPS).
Importantly, you now need to click “save” at the bottom for these changes to take effect.
After pressing “save” the app will return to your main Nightscout screen which will look a little like this:
Current glucose value
Information on AAPS system status - touch the individual tabs on the screen to display more detail. Add or remove these display options using hamburger menu.
Recent glucose trace with treatments (carbs, boluses) displayed
Longer-term glucose trace
“Hamburger” menu for setting display options, generating reports, editing profiles and Nightscout admin tools
“+” menu for entering treatments to send to AAPS.
Select different time period to display
Basal insulin profile
Green line = historical glucose Blue lines = predicted glucose
Looking in more detail at the top left menu of the Nightscout app:
Careportal retrospective edit
Turn on/off alarms
Hamburger - for setting preferences
Careportal - Log treatment - to send changes to AAPS
There is a huge amount of information on the status of the AAPS system in the grey tabs (and even more information is revealed if you tap the tab) on this screen:
5min glucose trend
Bolus wizard preview
Press on Basal to see your current profile and basal information
Time since latest CGM reading in AAPS
Pump: insulin, battery % and when AAPS last connected to it
Last time AAPS refreshed - if this is longer than 5 mins it can indicate a connection issue between AAPS phone and pump/CGM
Press on IOB to see split of basal and bolus insulin
Insulin age in reservoir
Cannula age
Battery status of AAPS phone
Size of your database. If it gets too full (DIY Nightscout only - hosted services just ignore) you may start having connectivity issues. You can delete data to reduce the size of the number in the Admin tools menu (via hamburger).
Press “refresh” at the bottom of the page to close the popup.
Sending treatments through the Nightscout app to AAPS
To set-up sending treatments from the Nightscout app to AAPS, on the main AAPS phone, go into the AAPSClient tab in the AAPS app. Open the right-hand dot menu, and open AAPSClientpreferences – synchronisation and select the relevant options in this menu. Set it to receive the different commands (temporary targets, etc) and also to synchronise profiles. If things don’t seem to be synchronised, go back to the AAPSClient tab and select “full synchronisation” and wait a few minutes.
Nightscout on your iPhone has all the same functions as Nightscout on your PC. It allows you to send many commands to AAPS, but it does not allow you to send insulin boluses.
Cancelling negative insulin to avoid repeat hypos
Although you cannot actually bolus insulin, you can however “announce” insulin through Nightscout as a “correction bolus”, although it is not delivered. Because AAPS now takes that fake insulin bolus into account, announcing insulin actually works to make AAPS less aggressive, and can be useful for cancelling negative insulin and preventing lows in the event that your profile has been too strong (for example due to prior exercise). You will want to check this for yourself in the presence of the AAPS phone, in case your Nightscout setup differs.
Some of the most useful Nightscout commands are described in the table below.
Nightscout command table
Most commonly used treatments |
Function, example of when command is useful |
---|---|
Correction bolus |
Allows you to announce but not bolus insulin. |
Carb correction |
Announce carbs now |
Temporary Target |
Allows temp targets to be set and cancelled. |
프로파일 변경 |
Allows you to check the current profile which is running, |
Less widely used commands |
Function, example of when command is useful |
---|---|
BG check |
Send a BG check to AAPS. |
Snack bolus |
Can announce carbs (plus proteins and fat) |
Announcement |
Add these info notes (DAD = diabetic dog alert). |
Pump site change |
Announces these pump changes. |
CGM sensor start |
Announces these CGM changes. |
Temp basal start |
Most useful in open looping. |
Read more about Nightscout options here
Tips for getting the most out of the Nightscout app
1). If you get “stuck” on a page and want to be able to see the main screen again, just click “refresh” (bottom middle) and this will take you back to the Nightscout homepage with the BG graph.
To see the current profile which is running on the phone, press the various icons on the screen above the graph. More info (current carb ratio, sensitivity and timezone etc.) can be seen by pressing “basal” and “OpenAPS” gives info about the profile and current target etc. Both the phone battery% and the pump battery % can also be monitored. BWP gives information on what the algorithm thinks will happen in the future, given the IOB and COB.
4) Smartwatches
Option 1) Controlling AAPS from a Wear OS Watch
Once you have setup AAPS on your watch, extensive details about the smartwatch faces and their functions can be found in Operation of Wear AAPS on a Smartwatch.
As a brief overview, the following functions can be triggered from the smartwatch:
set a temporary target
use the bolus calculator (calculation variables can be defined in settings on the phone)
administer eCarbs
administer a bolus (insulin + carbs)
watch settings
status
check pump status
check loop status
check and change profile, CPP (Circadian Percentage Profile = time shift + percentage)
show TDD (Total daily dose = bolus + basal per day)
Remote bolus where the caregiver and T1D child are in different locations (this is possible for the AAPS watch and AAPS phone providing both devices are connected to the network)
Communication from caregivers to the watch using other apps (like WhatsApp)
It is possible to add additional apps to the watch, like WhatsApp, for messaging (for example) between caregivers and kids. It is important only to have ONE Google account associated with the phone, or the watch will not bring this data across. You need to be 13 or older to have a Samsung account, and this needs to be set up in the same email address which is used on the Android phone.
A video explaining getting WhatsApp setup for messaging on the Galaxy 4 watch (you can’t get full functionality of WhatsApp) is shown here
Making adjustments in both the Galaxy wearable app on the AAPS phone and the watch makes it possible for WhatsApp messages to announce with a slight vibration, and also for the WhatsApp message to display over the existing watchface.
Option 2) AAPS on watch, for remote control of AAPS on a phone
Similarly to using a follower phone with either AAPSClient, Nightscout or SMS commands (link to sections) a smartwatch can be used to remotely control AAPS and provide full profile data. A key difference to using a follower phone is that the smartwatch to AAPS phone link is via bluetooth and does not require an authenticator code. As a side-note, if both smartwatch and AAPS phone linked by bluetooth are also on a Wi-Fi/Cellular data network, the watch will also interact with the AAPS phone, giving a longer range of communication. This includes remote delivery of a bolus where the caregiver with the AAPS watch and T1D child (with AAPS phone) are in different locations and which can useful in circumstances where the T1D child is in school.
A remote control smartwatch is therefore often useful in any situation where:
a) AAPSClient/Nightscout/SMS commands cannot work; or
b) The user wishes to avoid the need for authenticator code (as required for the follower phone with inputting data, selecting TT or entering carbs).
A smartwatch needs to have Android wear software (ideally 10 or higher) to be able to control AAPS. Please check the technical specifications of the watch, and check the Phones page. Search, or ask in the AAPS Facebook/Discord groups if unsure.
Specific How-to guides for setting up AAPS on the popular [Samsung Galaxy Watch 4 (40mm) is given below. The Garmin watch is also a popular choice. If you have experience of setting up a different smartwatch which you think would be useful to others, please add it into these pages edit the documentation to share your findings with the wider AAPS community.
Option 3) AAPSClient on a watch for remote control of AAPS on a phone
The software for the watch, AAPSClient Wear apk, can be downloaded directly from Github.
To download the software, click on the required app (in this screenshot, either wear-aapsclient-release_3.2.0.1 or wear-aapsclient2-release_3.2.0.1 would work, there are two versions in case you need a copy for a second caregiver watch):
Then “save as” and save the file to a convenient location on your computer:
The AAPSClient wear apk can be transferred to your phone and side-loaded onto the watch in the same way as the AAPS Wear app, as detailed in Transferring the Wear app onto your AAPS phone
