Дистанционное управление AAPS

Существует 4 наиболее эффективных инструмента для удаленного управления AAPS:

  1. SMS commands (follower phone can be either Android or iOS), 2) AAPSClient (follower phone is Android) 3) Nightscout (Android, iOS or other computer/device).

  2. Smartwatches (Android)

The first three are mostly appropriate for caregivers/parents, but smartwatches are very useful for caregivers/parents and for adults with diabetes themselves.


1) SMS Commands

See the dedicated SMS Commands page.

2) AAPSClient

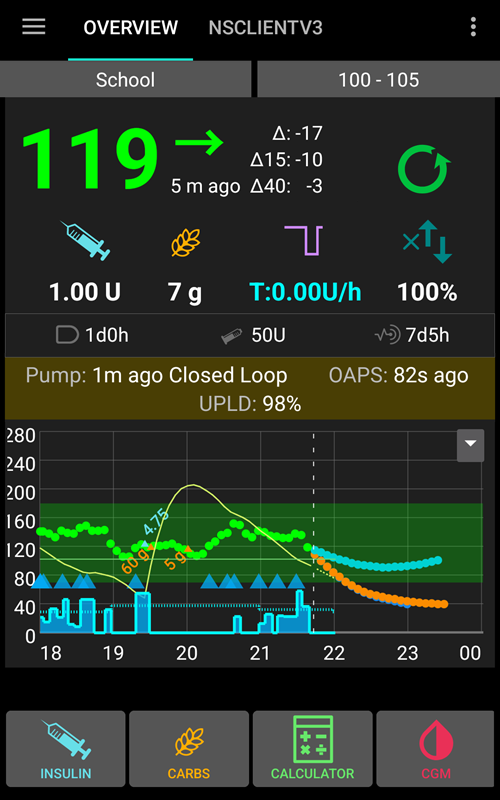

AAPSClient похож внешне на сам AAPS, но позволяет опекунам отправлять команды в AAPS дистанционно:

NSCLIENT_ 2024-05-17 134512

About AAPSClient and AAPSClient2

There are 2 versions of the apk that can be installed, AAPSClient & AAPSClient2 which have a subtle but important difference as explained below.

Should a caregiver require a second copy of AAPSClient to remote control an additional patient with a Nightscout account, they should install AAPSClient2 in addition to AAPSClient. AAPSClient 2 позволяет одному опекуну установить apk AAPSClient два раза на одном и том же телефоне, чтобы получить одновременный доступ и дистанционное управление для двух различных пациентов.

To differentiate between the two apps, some elements have a different background color: yellow for AAPSClient, blue for AAPSClient2. Those elements are the app icon, the widget, and the AAPS status section in the app itself.
Note : opacity of the widget background is customizable.


Download and installation

AAPSClient can be installed on a single phone or multiple follower phones (i.e. parent 1’s follower phone and parent 2’s follower phone) in order for both caregivers to be granted access and remote control a patient’s AAPS phone.

To download AAPSClient, navigate to the GitHUb repository and click on the asset “app-AAPSClient-release_x.x.x.x” (it may be a newer version to that shown in the screenshot below):


Затем перейдите в загрузки на своем компьютере. В Windows, -downloads_ покажется лента справа:


После загрузки нажмите показать в папке для поиска файла.

The AAPSClient apk can now be either:

Перенесено при помощи кабеля USB на телефон опекуна; или перетащено в папку Google диска, а затем добавлено на телефон опекуна после нажатия на app-AAPSClient-release-3. apk.

Should you be needing AAPS for yourself, and AAPSClient for monitoring someone else, you will need to build AAPSClient yourself instead of downloading it from the Github repository as described above. The reason is that you can’t install both AAPS and AAPSClient on the same phone, signed by a different key.
To build AAPSClient yourself, follow the same process as regular AAPS build. On the Generate signed App Bundle or APK page, select aapsclientRelease instead of fullRelease.

Synchronization- AAPSClient and AAPS set up (for Version 3.2.0.0 above)

Once AAPSClient apk is installed on the follower phone, the user must ensure their ‘Preferences’ in Config Builder are correctly set up and aligned with AAPS for Nightscout 15 (see Release Notes here). The example below provides Synchronization guidance for NSClient and NSClientV3 using Nightscout15 but there are other options available with AAPS (e.g xDrip+).

Within the ‘Synchronization’ located under ‘Config Builder’, the user can opt for either Synchronization options for both AAPS and follower phone being:

  • Option 1: NSClient (also known as ‘v1’) - which synchronizes the user’s data with Nightscout; or

  • Option 2: NSClientV3 (also referred to as ‘v3’).- which synchronizes the user’s data with Nightscout using v3 API.

AAPS1_Screenshot 2024-05-17 133502

The user must ensure that both the AAPS and AAPS Client phones are synched together by actioning either option for v1 or v3 being:

Option 1: v1 for both phones:

  • Enter your Nightscout URL

  • Enter your API secret

Option 2: v3 for both phones:

  • Enter your Nightscout URL under NSClientV3 tab

  • Enter your NS access token under ‘Config Build’ tab. Please follow the notes here

If selecting Websockets (which is optional) ensure this is activated or deactivated for both AAPS’ and AAPSClient’s phone. Activating Websockets in AAPS and not within AAPSClient (and vice versa) will only cause AAPS to malfunction. By enabling websockets will allow for faster synchronization with Nightscout but may lead to more phone battery consumption.

WB2_Screenshot 2024-05-17 140548

Users should ensure that both AAPSClient and AAPS are showing ‘connected’ under the ‘NSClient“ tab for each phone, and that ‘Profile Switches’ or ‘Temp Target“ can be correctly activated in AAPS once selected in AAPSClient.

Users should also ensure that carbs are logged in both ‘Treatments’ within both AAPSClient and AAPS otherwise this could indicate a malfunction within the user’s set up.

Troubleshooting „NS access token“ configuration issues

The precise „NS access token“ configuration may differ depending upon whether your Nightscout provider is a paid for hosted site or not.

If you are struggling with AAPS v3 to accept the „NS access token“ and using a paid for hosted Nightscout site, you may wish to first liaise with your Nightscout provider on how to resolve the „NS access token“ difficulties. Otherwise, please reach out to the AAPS group but please double check that you have correctly followed the notes before doing so here.

Возможности AAPSClient включают:

Tab / Hamburger

Features

Action Tab

- Profile Switch
- Temp Target
- BG Check
- CGM Sensor Insert
- Note
- Exercise
- Announcement
- Question?
- History Browser

Food Tab

Treatments Tab

- Check Treatments delivered including bolus and carbs entered

Maintenance Tab

- Export and Import Settings

Profile Tab

- Creating new profile
- Profile switch

AAPSClient позволяет родителю/опекуну выполнять действия, которые выполняются непосредственно в приложении AAPS (за исключением болюсов) дистанционно по мобильной или интернет-сети. Основными преимуществами AAPSClient являются скорость и легкость, с которой опекуны/родители могут использовать его для дистанционного управления APPS. AAPSClient can be much faster than entering SMS Commands, if delivering a command which would require authentication. Команды, введенные в AAPSClient загружаются в Nightscout.

Remote control through AAPSClient is only recommended if your synchronization is working well (i.e. you don’t see unwanted data changes like self-modification of TT, TBR etc) see release notes for Version 2.8.1.1 for further details.

AAPSClient with smartwatch options

Смарт-часы - полезный инструмент в управлении AAPS у детей. Возможны несколько различных конфигураций. Если AAPSClient установлен на родительский телефон,, приложение AAPSClient WearOS может быть установлено на смарт-часах, сопряженных с родительским телефоном. На них будет отображаться текущая ГК, статус замкнутого цикла, возможность вписать углеводы, временные цели и изменения профиля. Возможности ввести болюс с приложения на WearOS не будет. You can read more about Smartwatches here.

3) Nightscout

Кроме того, что Nightscout является сервером в «Облаке», также есть специальное приложение Nightscout, которое можно загрузить непосредственно из App Store на iPhone. If you have an Android follower phone, there is not a dedicated Nightscout app and it is better to use AAPSClient, or, if you only want to follow, and not send treatments you can download and install the Nightwatch app from the Playstore.

После установки приложения Nightscout на iPhone, откройте приложение и следуйте инструкциям настройки, введя адрес Nightscout (см. ниже, слева). Форма может быть разной, в зависимости от провайдера хостинга. (например http://адресвашегосайта.herokuapp.com). Затем введите Nightscout API secret (см. ниже, справа). Если API-пароль не запрошен, то нужно ввести его, нажав на замок в верхней части приложения:


Дополнительная информация об установке доступна непосредственно на ресурсе Nightscout

When you first log in, you will have a very simple display. Customize the display options, by selecting the “hamburger” in the top right and scrolling down:


Прокрутите вниз до «Настройки». «Масштаб» можно заменить на «линейный» т. к. по умолчанию он логарифмический, и в строке «отображать базал» выберите «по умолчанию», чтобы появился график базала.


Select your desired options. Uncheck alarms if you use an alternative app for alarms.


Продолжайте прокручивать вниз до «показать расширения (плагины)».

Убедитесь, что «портал терапии» отмечен галочкой, а также можете выбрать другие показатели (наиболее полезные: активный инсулин IOB, помпа, катетер, отсчет возраста инсулина, базальный профиль и OpenAPS).

Не забудьте, это важно, чтобы эти изменения вступили в силу, нажать кнопку «сохранить» в нижней части.


После нажатия «сохранить» приложение вернется на главный экран Nightscout и будет выглядеть примерно так:

  1. Current glucose value

  2. Information on AAPS system status - touch the individual tabs on the screen to display more detail. Add or remove these display options using hamburger menu.

  3. Recent glucose trace with treatments (carbs, boluses) displayed

  4. Longer-term glucose trace

  5. «Hamburger» menu for setting display options, generating reports, editing profiles and Nightscout admin tools

  6. «+» menu for entering treatments to send to AAPS.

  7. Select different time period to display

  8. Basal insulin profile

  9. Green line = historical glucose Blue lines = predicted glucose


В верхнем левом меню приложения Nightscout вы найдете дополнительную информацию:

  1. Careportal retrospective edit

  2. Turn on/off alarms

  3. Hamburger - for setting preferences

  4. Careportal - Log treatment - to send changes to AAPS

верхняя панель Nightscout

На серых вкладках огромное количество информации о состоянии системы AAPS (и еще больше информации если щелкуть по вкладкам):

  1. 5min glucose trend

  2. Bolus wizard preview

  3. Press on Basal to see your current profile and basal information

  4. Time since latest CGM reading in AAPS

  5. Pump: insulin, battery % and when AAPS last connected to it

  6. Last time AAPS refreshed - if this is longer than 5 mins it can indicate a connection issue between AAPS phone and pump/CGM

  7. Press on IOB to see split of basal and bolus insulin

  8. Insulin age in reservoir

  9. сколько времени прошло с момента установки канюли

  10. Battery status of AAPS phone

  11. Size of your database. If it gets too full (DIY Nightscout only - hosted services just ignore) you may start having connectivity issues. You can delete data to reduce the size of the number in the Admin tools menu (via hamburger).



Press «refresh» at the bottom of the page to close the popup.

Отправка событий терапии через приложение Nightscout в AAPS

Чтобы настроить отправку событий терапии с приложения Nightscout на главный телефон AAPS, перейдите на вкладку AAPSClient в приложении AAPS. Откройте меню с правой стороны, найдите настройки синхронизации AAPSClient – и выберите соответствующие параметры. Настройте его на получение различных команд (временных целей и т. д.) а также на синхронизацию профилей. Если ничего не синхронизируется, вернитесь на вкладку AAPSClient, выберите «полная синхронизация» и подождите несколько минут.

Nightscout на iPhone имеет те же функции, что и Nightscout на ПК. Он позволяет отправлять множество команд AAPS, за исключением болюсов.

Отмена отрицательного инсулина во избежание повторных гипо

Хотя у нас нет возможности вводить болюсы, мы можем «внести» инсулин через Nightscout как «болюс на коррекцию», который реально не вводится. В этом случае AAPS будет учитывать этот инсулин,, заставляя алгоритм AAPS действовать менее агрессивно, что полезно при отмене отрицательного активного инсулина. Это также предотвратит гипогликемию при агрессивно настроенном профиле. Вы можете проверить это самостоятельно в присутствии телефона AAPS если настройки Nightscout отличаются.

24-10-23, отменить отрицательный инсулин NS

Некоторые полезные команды Nightscout приведены в таблице ниже.

Таблица команд Nightscout

Most commonly used treatments

Function, example of when command is useful

Correction bolus

Allows you to announce but not bolus insulin.
Very useful for cancelling negative insulin to prevent a hypo,
for example in the middle of the night, if the profile has been too strong.

Carb correction

Announce carbs now

Temporary Target
Temporary Target cancel

Allows temp targets to be set and cancelled.
Note that cancelling does not always work,
in this instance you can set a new target for a short time period (2 min)
which will then revert back to the normal target afterwards.

Переключение профиля

Allows you to check the current profile which is running,
and switch to another profile, either permanently,
or for a defined length of time (mins).

Less widely used commands

Function, example of when command is useful

BG check

Send a BG check to AAPS.

Snack bolus
Meal bolus
Combo bolus

Can announce carbs (plus proteins and fat)
from 60 min in the past to 60 min in the future.
Combo bolus allows insulin announcement at the same time.

Announcement
Note
Question
Exercise
Open APS offline
DAD alert

Add these info notes (DAD = diabetic dog alert).

Pump site change
Battery change
Insulin cartridge change

Announces these pump changes.

CGM sensor start
CGM sensor insert
CGM sensor stop

Announces these CGM changes.

Temp basal start
Temp basal end

Most useful in open looping.

Подробнее возможностях Nightscout здесь

Как извлечь максимум пользы из приложения Nightscout

1). Если вы «застряли» на странице и хотите видеть главное окно снова, просто нажмите «обновить» (внизу по центру) и вернетесь на домашнюю страницу Nightscout с графиком ГК.

Чтобы увидеть параметры текущего профиля на телефоне, нажмите на различные иконки на экране над графиком. Больше информации (текущий углеводный коэффициент, чувствительность, часовой пояс и т. д.) можно увидеть нажав «basal»; а нажав на «OpenAPS» получим данные о профиле, текущей цели и т. д. Можно также отслеживать % батареи телефона и % батареи помпы. Калькулятор болюса дает информацию о прогнозе алгоритма с учетом активного инсулина IOB и активных углеводов COB.

Другие иконки в меню: что означает карандаш (редактирование)?

Карандаш редактирования поможет (технически) переместить или удалить болюс или коррекцию с графика за последние 48 часов.

Подробнее здесь

Хотя это может пригодиться для удаления внесенных (но не получивших болюса) углеводов, на практике эта функция плохо работает с AAPS и мы рекомендуем вносить такие изменения непосредственно через приложение AAPS.

Смарт-часы

Option 1) Controlling AAPS from a Wear OS Watch

Wear Remote 1

Once you have setup AAPS on your watch, extensive details about the smartwatch faces and their functions can be found in Operation of Wear AAPS on a Smartwatch.

As a brief overview, the following functions can be triggered from the smartwatch:

  • set a temporary target

  • use the bolus calculator (calculation variables can be defined in settings on the phone)

  • administer eCarbs

  • administer a bolus (insulin + carbs)

  • watch settings

  • status

  • check pump status

  • check loop status

  • check and change profile, CPP (Circadian Percentage Profile = time shift + percentage)

  • show TDD (Total daily dose = bolus + basal per day)

  • Remote bolus where the caregiver and T1D child are in different locations (this is possible for the AAPS watch and AAPS phone providing both devices are connected to the network)

Communication from caregivers to the watch using other apps (like WhatsApp)

It is possible to add additional apps to the watch, like WhatsApp, for messaging (for example) between caregivers and kids. It is important only to have ONE Google account associated with the phone, or the watch will not bring this data across. You need to be 13 or older to have a Samsung account, and this needs to be set up in the same email address which is used on the Android phone.

A video explaining getting WhatsApp setup for messaging on the Galaxy 4 watch (you can’t get full functionality of WhatsApp) is shown here

Making adjustments in both the Galaxy wearable app on the AAPS phone and the watch makes it possible for WhatsApp messages to announce with a slight vibration, and also for the WhatsApp message to display over the existing watchface.

Вариант 2) AAPS на смарт-часах, для дистанционного управления AAPS на телефоне

Аналогично использованию телефона фоллоуэра либо с AAPSClient, Nightscout или SMS (ссылка на разделы) смарт-часы можно использовать для удаленного управления AAPS и предоставления полных данных профиля. Ключевое различие с телефоном фоллоуэра заключается в том, что смарт-часы связываются с AAPS через Bluetooth и не требуют кода аутентификатора. As a side-note, if both smartwatch and AAPS phone linked by bluetooth are also on a Wi-Fi/Cellular data network, the watch will also interact with the AAPS phone, giving a longer range of communication. This includes remote delivery of a bolus where the caregiver with the AAPS watch and T1D child (with AAPS phone) are in different locations and which can useful in circumstances where the T1D child is in school.

Таким образом, смарт-часы дистанционного управления полезны когда:

a) команды AAPSClient/Nightscout/SMS не работают; или

b) The user wishes to avoid the need for authenticator code (as required for the follower phone with inputting data, selecting TT or entering carbs).

На смарт-часах требуется программное обеспечение Android wear (идеально версии 10 или выше), чтобы управлять AAPS. Please check the technical specifications of the watch, and check the Phones page. Воспользуйтесь поиском или задайте вопрос в группе AAPS на Facebook или в Discord если есть сомнения.

Specific How-to guides for setting up AAPS on the popular [Samsung Galaxy Watch 4 (40mm) is given below. Часы Garmin также популярны. If you have experience of setting up a different smartwatch which you think would be useful to others, please add it into these pages edit the documentation to share your findings with the wider AAPS community.

Вариант 3) AAPS на смарт-часах, для дистанционного управления AAPS на телефоне

Wear Remote 2

Программное обеспечение для часов, AAPSClient Wear apk, можно загрузить непосредственно с Github.

Чтобы скачать приложение, нажмите на требуемое приложение (на этом снимке экрана, либо wear-aapsclient-release_3.2.0. либо wear-aapsclient2-release_3.2.0. будут работать, есть две версии (копия для второго опекуна):


Затем «сохранить как» и сохранить файл в удобном месте на компьютере:


The AAPSClient wear apk can be transferred to your phone and side-loaded onto the watch in the same way as the AAPS Wear app, as detailed in Transferring the Wear app onto your AAPS phone
